Equipments - Die Cast Part Painting

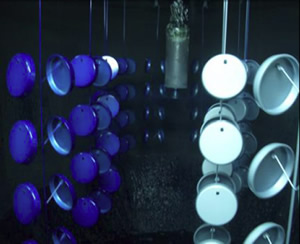

rotating electrostatic coating

Rotating electrostatic coating for die cast parts.

Painting over die casting parts are needed for aesthetic or durability purposes. Most die cast parts are painted via liquid or powder coating.

Liquid Painting - Rotating Electrostatic Coating

Coating material is atomized to negatively charged electrostatic particles and then sprayed over the die cast parts, which had been made positive electrodes by electrostatic induction.

Liquid Painting - Airbrush Coating

Coating is sprayed over the surface of die cast parts by compressed air.

Powder Coating

Applying high-voltage direct currents to powder to make it stick to die cast parts via electrostatic attraction, then melting the coating to cover over the surface of the die cast parts by heat in furnace.

Equipment Model Specification Quantity
Chromate chemical conversion treatment for military components     2
Sn, Copper, Zinc, Ni, Chrome, Gold and Silver platings
Liquid painting conveyer line     2
Powder painting conveyer line     3
Spray booth   Max volume: 6' x 4' x 3' 6
Micro adjust screen table     3
Shift print machine     5
X-Rite spectrophotometer and color analysis software
Tool gauge thickness microscope
Tassco 90 degree gloss meter
Pencil hardness test kit
Pantone Formula guide
Original RAL color card
Anodize and Hard Anodize systems for aluminum     2
